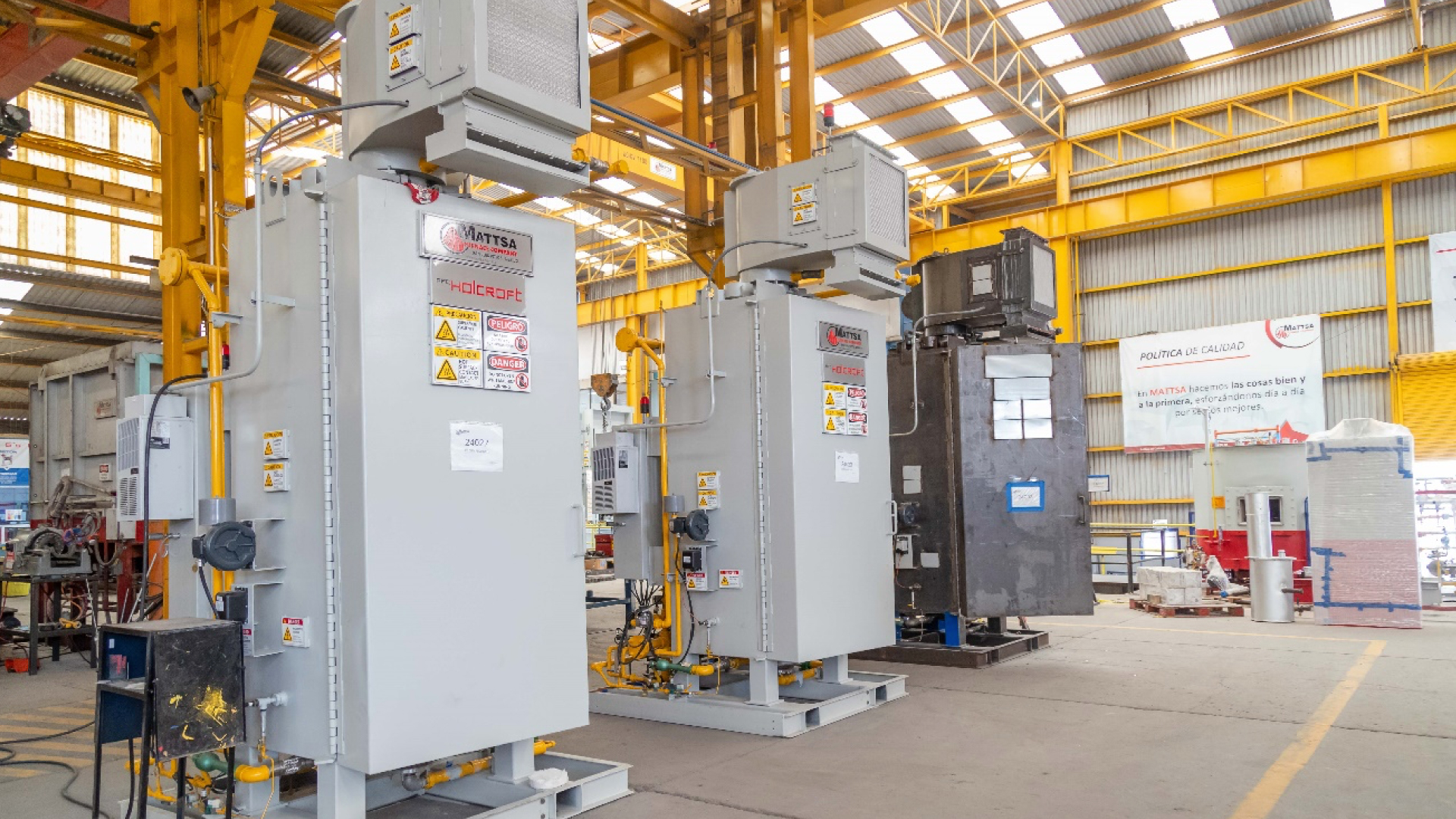

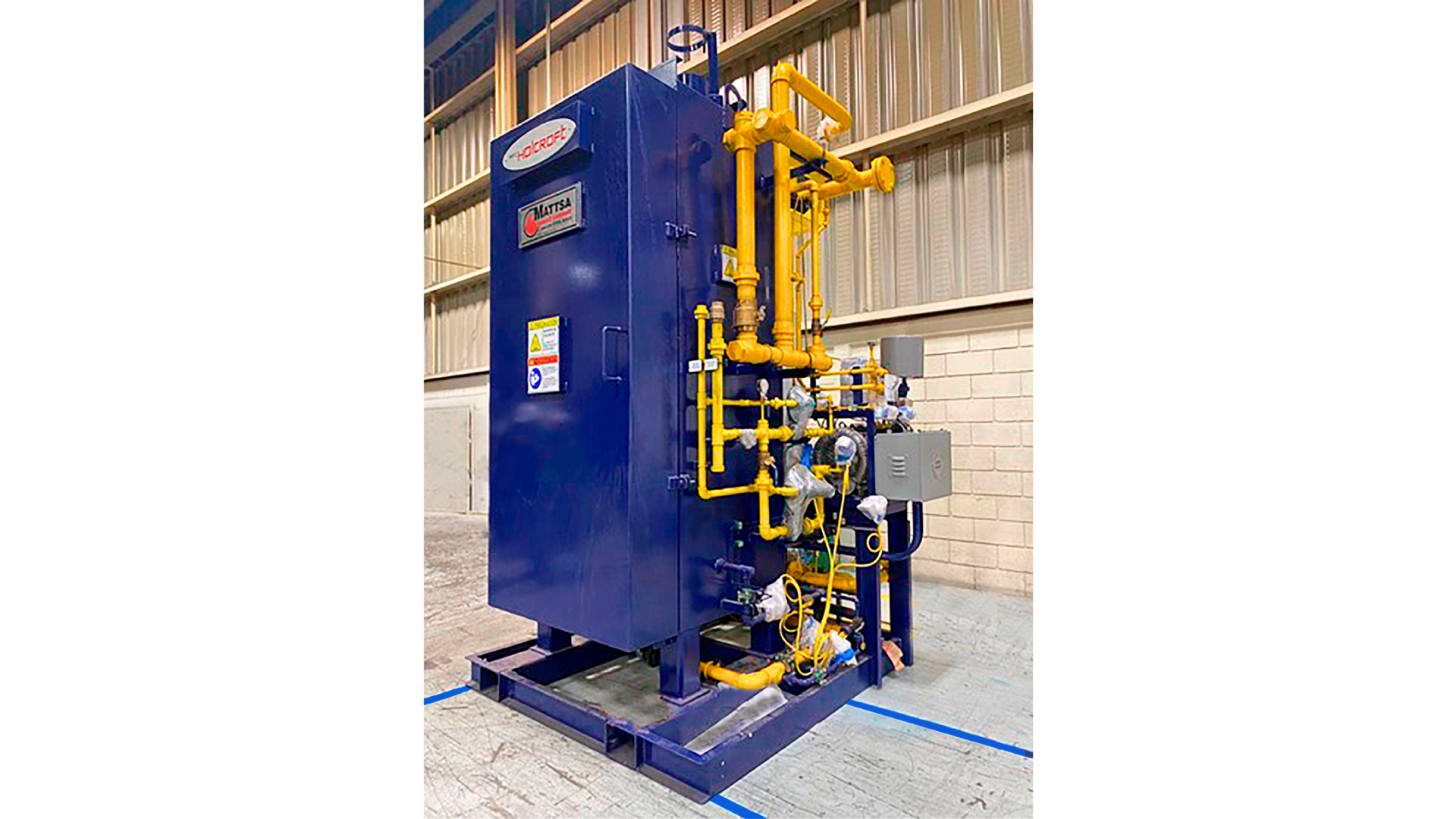

ENDOTHERMIC ATMOSPHERE GENERATOR
Specialized equipment for generating carbon-rich atmospheres, essential for the carburizing process. Through the controlled reaction of a hydrocarbon gas with air at high temperature, it produces a gaseous mixture composed mainly of carbon monoxide and hydrogen, responsible for superficially enriching steel with carbon.
MAIN FEATURES
- Continuous production of a stable carburizing atmosphere.
- Precise control of the air-to-gas ratio to adjust carbon potential.
- Reaction chamber with a high thermal efficiency catalyst.
- Easily removable retort.
- Capability to supply one or multiple furnaces simultaneously.
- Dew point indicator.
- Easy carbon burning system in the retort.
- Compatible with gas analyzers and SCADA systems for real-time monitoring.
- Optional retort extraction yoke.
- Option to expand with additional modules.
AVAILABLE CAPACITIES:
- 1,800 CFH – 1 Module
- 4,500 CFH – 1 Module
- 9,000 CFH – 2 Modules
- 13,500 CFH – 3 Modules
